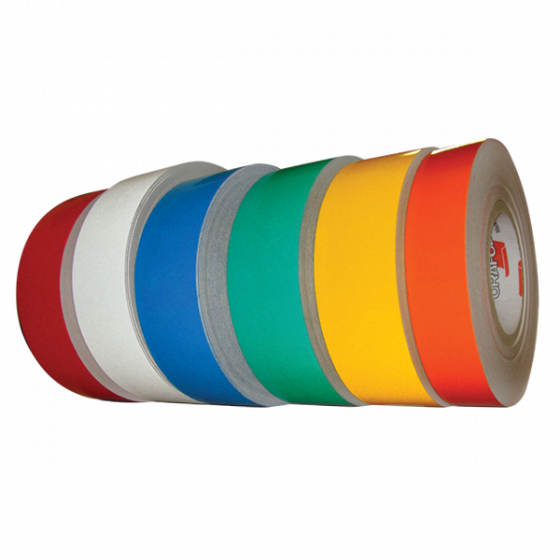

ORALITE 5200 Economy Grade Reflective Vinyl

In stock
SKU
ORA5200
As low as £5.84
Victory Design Payment Options
Rating:
100% of 100
Victory Design - Branch Location

Central UK Location

Daily deliveries throughout
the UK and Europe

ORALITE® 5200 Economy Grade are weatherproof, self-adhesive retroreflective films with an excellent corrosion and solvent resistance. The retro reflective system of the ORALITE® 5200 Economy Grade consists of catadioptric glass beads which are embedded in a transparent layer of plastic material. The smooth surface has a high scratch resistance and a good printability.

50 metres on a roll.

  • Special cast PVC film
  • Reflective film (80 micron)
  • 6 colours
  • 3 years durability
  • For information signs and reflective advertisements
  • Ensures a minimum of reflection
  • For short term outdoor application
  • Solvent polyacrylate, permanent

ORALITE® 5200 Economy Grade was especially developed for the manufacture of information signs as well as for reflective advertising art, which are intended for a short-term outdoor use and which require just a minimum of retro-reflection. The smooth surface shows a high scratch resistance and impact strength, and a very good printability. The ORALITE® 5200 Economy Grade has an adhesive with an excellent adhesion on metallic surfaces as aluminium and zinc coated steel plate.

ORALITE® 5200 can be screen printed with ORALITE® 5018 Screen Printing Ink or inkjet printed with most solvent based inks, UV- or Latex inks. Please refer to the chosen ink manufacturer’s instructions to determine if an application laminate is required. If required, it is recommended that the material is laminated with ORAGUARD® 290F or ORAGUARD® 293F in order to provide increased UV protection. When using non-ORAFOL inks or printers, the application must be tested and approved by the customer.

When using the ORALITE® 5200 Economy Grade the particular national specifications have to be complied with.

Thickness* (without protective paper and adhesive) 120 micron
Temperature resistance** Adhered to aluminium, -50°C to +82°C
Adhesive power* (FINAT TM1 after 24h, stainless steel) 15 N/25mm (film tear)
Shelf life** 2 years
Application temperature > +10°C
Service life by specialist application*** under vertical outdoor exposure 3 years

*average   **in original packaging, at 20°C and 50% relative humidity   ***standard Central European climate

FAQ

Oralite 5200 comes as standard at 1220mm.

The rolls of Oralite 5200 are 50m long.

The durability of Oralite 5200 is up to 3 years.

Yes, Oralite 5200 does not need edge sealing, so it can be cut and still be used just as effectively.

Due to the new REMA mandates, Oralite 5200 is not Chapter 8 compliant, for either highway or emergency service.

Oralite 5200 reflective can be stored for up to 2 years prior to use.

Yes, we can slit 5200 down to 610mm or we also supply strip rolls at 25/50/150/250mm.

Oralite 5200 comes in white, blue, red, orange, green and yellow.

Product Download Icon

Product Specification

Download a full product specification here
