ORACAL 7510 Fluorescent Vinyl

In stock
SKU
ORA7510FLY
As low as £9.53
Victory Design Payment Options
Rating:
100% of 100
Victory Design - Branch Location

Central UK Location

Daily deliveries throughout
the UK and Europe

Oracal 7510 fluorescent vinyl is a high performance cast fluorescent film, with high visibility when illuminated by all daylight conditions.

50 metres on a roll.

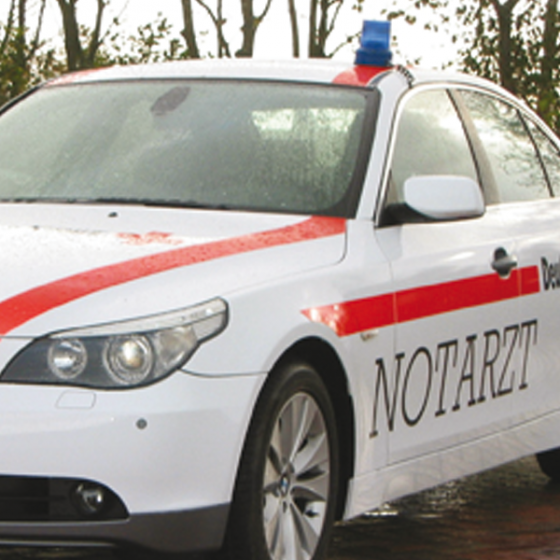

Oracal 7510 is for outdoor applications. Designed for warning signs, vehicle and bus advertising, name plates and graphics of all types that requires specila high impact visibility. Well suited for use on die-cut plotter systems.

Thickness* (without paper and adhesive) 150 micron
Dimensional stability (FINAT TM 14) Adhered to steel, no measurable shrinkage in cross direction, in length 0.3mm max
Temperature resistance Adhered to aluminium, -40°C to 110°C, no variation
Sea water resistance (DIN 50021) Adhered to aluminium, after 100h/23°C no variation
Adhesive power* (FINAT TM 1, after 24h, stainless steel 18 N/25mm
Tensile strength (DIN EN ISO 527) Along: min. 15 MPa
Across: min. 15 MPa
Elongation at break (DIN EN ISO 527) Along: min. 120%
Across: min. 120%
Shelf life** 2 years
Application temperature Min. +8°C
Service life by specialist application (Under vertical outdoor exposure (normal climate of Central Europe) All colours: 2 years (not printed)
Fluorescent yellow: 3 years (not printed)

*average   **in original packaging, at 20°C and 50% relative humidity

FAQ

Oracal 7510 Fluorescent Vinyl is 150 microns thick excluding the adhesive and backing paper carrier.

- Oracal 7510 Fluorescent Vinyl will last 2 years on the shelf under ideal conditions.

Before application, ensure that the substrate surface is clean and free of contaminants such as dust, grease or oil. When applying, the surface temperature must be over +8° C, ideally 20° C.

Oracal 7510 Fluorescent Vinyl should ideally be stored at 20° C with a relative humidity of 50%.

Oracal 7510 Fluorescent Vinyl can be printed to using solvent and eco-solvent inks.

Under Vertical outdoor exposure, Oracal 7510 Fluorescent Vinyl has an unprinted service life of 3 years.

Product Download Icon

Product Specification

Download a full product specification here
