3M ECE104 983 Diamond Grade Rigid Surfaces
Central UK Location
Daily deliveries throughout
the UK and Europe
This product is for use on rigid sided vehicles. Apply to Heavy Goods Vehicles with a mass over 7.5 tonnes and trailers over 3.5 tonnes.
Use red markings on the rear of vehicles, covering at least 80 percent of its total length and width and as close as possible to the edges. Reflective strip rigid sided vehicle application.
Red or yellow must be used for the rear of vehicles and yellow or white may be used for the sides, covering at least 80 percent of its length.
- Help to reduce accidents and save lives through increased visibility
- Less accidents mean less downtime and decreased repair costs
- Improves corporate image through being seen to be proactive about safety
- Protect your company against possible legal action related to third party safety
- Meet the requirements of UN-ECE 104 Regulation

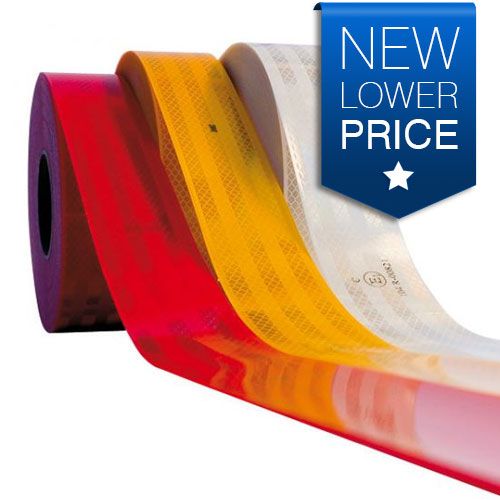

Roll sizes
Yellow, red and white: 53.5mm x 50m
Fluorescent yellow green: 51mm x 45.7m
3M Diamond Grade Demonstration
3M Diamond Grade Application Demonstration
Which colour ECE104 tape to use where on the vehicle
| Position on vehicle | Colours |
| Front | White |
| Sides | Yellow or white* |
| Rear | Red or yellow* |
* The Department for Transport states that the UK preference for colours is yellow to the sides and red to the rear.
Reflective Strip Rigid Sided Vehicles
ECE104 is a regulation that establishes guidelines for the use of retro-reflective safety markings on heavy goods vehicles operating throughout Europe. Since July 2011, all newly registered HGVs over 7.5 tonnes and trailers over 3.5 tonnes operating in the UK, are required by law to be fitted with homolgated retro-reflective markings. These must clearly outline the rear and sides of the vehicle to make it visible for up to 1000 metres in low light conditions. ECE104 specifies the standard for the reflective materials used and where and how it must be positioned on the vehicle or trailer.
FAQ
3M ECE104 reflective rolls come at: 53.5mm for Yellow, red, white and 51mm for Fluorescent yellow green.
The rolls are 50m for yellow, red, white, and 45.7m for yellow-green.
The durability of 3M ECE104 reflective is up to 8 years.
With the new REMA mandates, 3M Diamond Grade ECE104 reflective is Chapter 8 complaint, for both Highway maintenance and emergency services.
3M ECE104 reflective tape can be stored for up to 2 years prior to use.
3M ECE104 tape comes in yellow, red, white and yellow-green.
Yes, for HGV each colour is for different locations on the vehicle. White on the front, red or yellow on the rear, and yellow/white for the side.
3M ECE104 tape is designed for use on solid side / box vans and lorries.
Any new HGV registered that’s over 7.5 tonnes or trailers over 3.5 tonnes must use conspicuity markings.
Product Specification
Download a full product specification here
3M Conspicuity ECE104
Read more about 3M ECE104 products here
